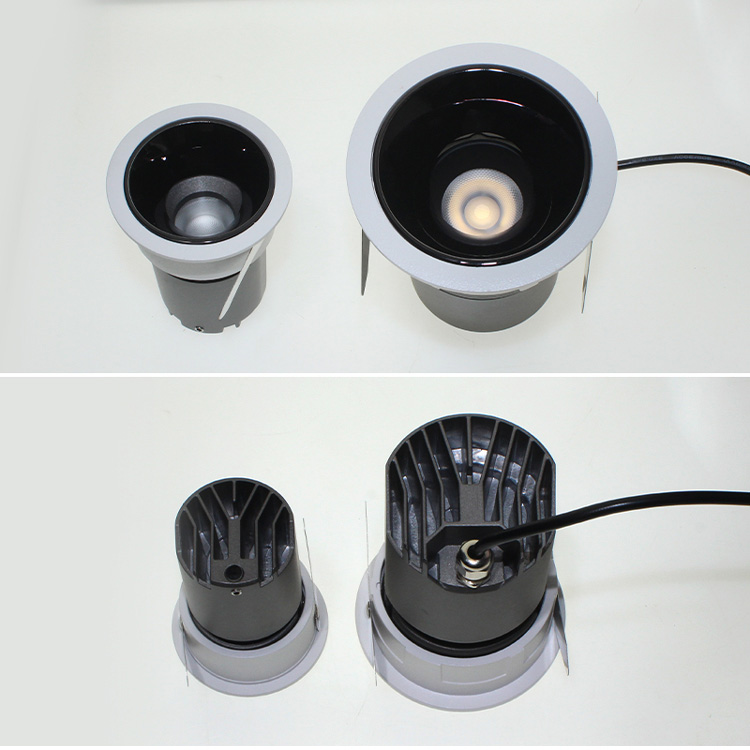

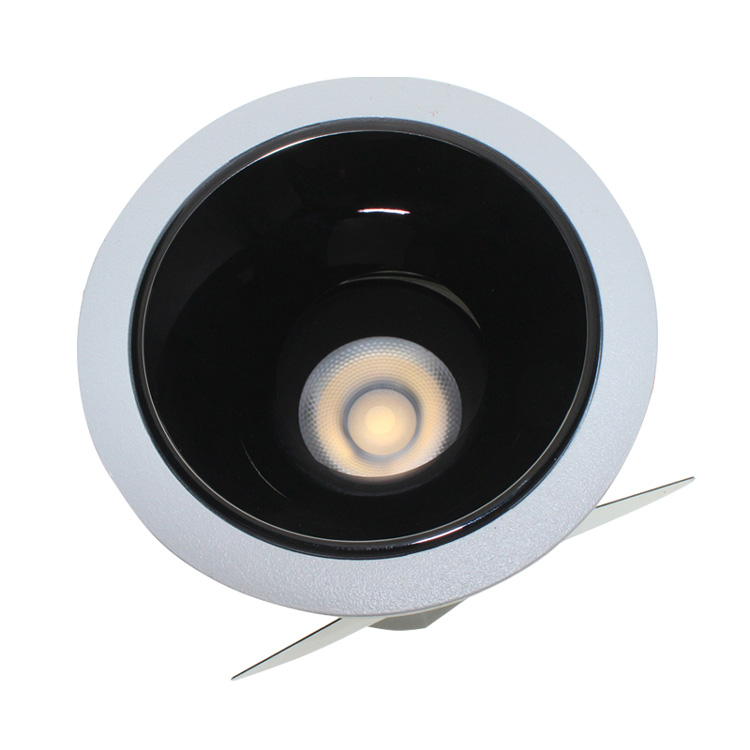

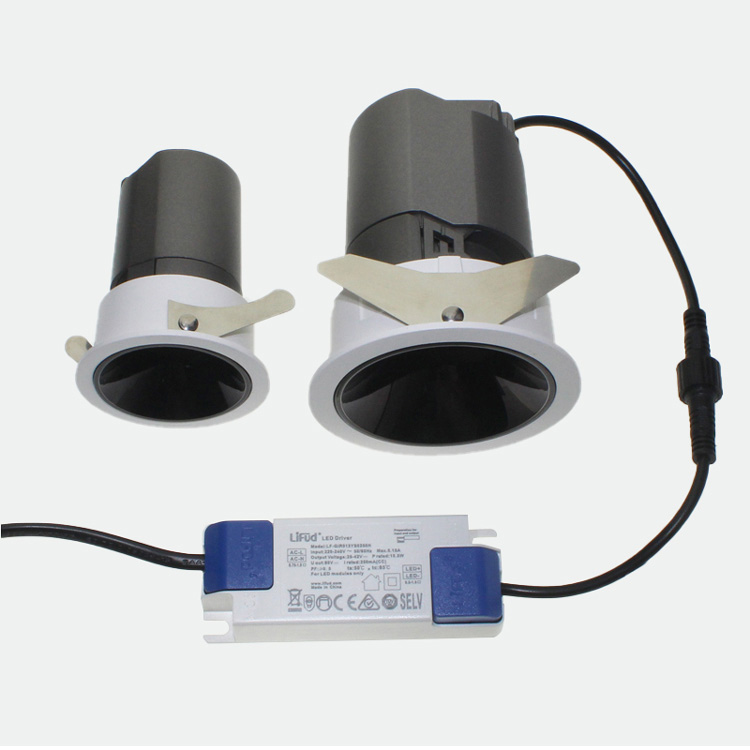

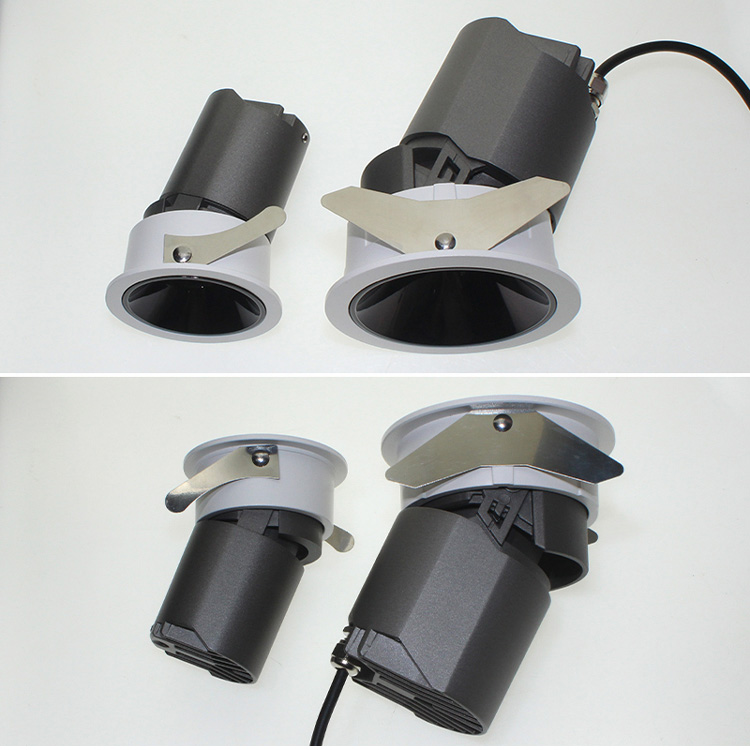

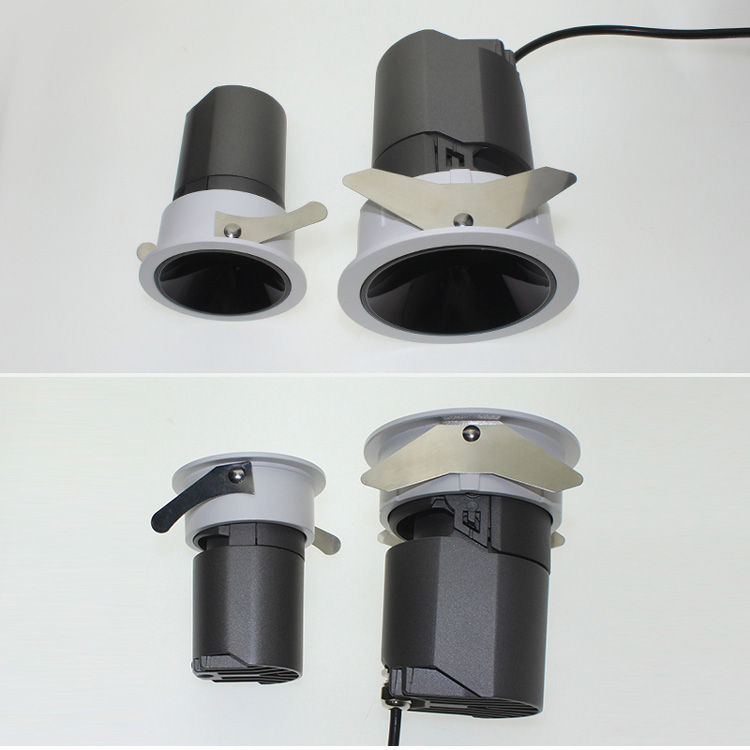

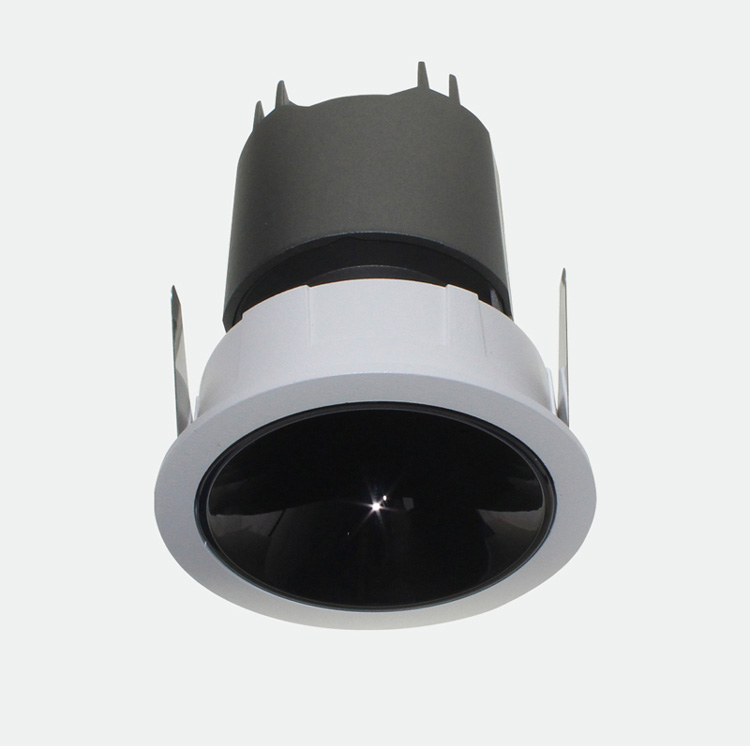

W323 Family LED wall washer lights
Specifications
We also offer different styles and sizes that can be safely used in a variety of indoor scenarios to suit your different needs
| Name | LED ceiling light | ||
| Supplier | LEDEAST | ||
| Model | W323 | ||
| Picture |  |
 |
 |
| Power | COB 7W | COB 12W | COB 20W |
| Hole size | Ø55mm | Ø75mm | Ø95mm |
| Size | Ø62*79mm | Ø84*100.5mm | Ø110*121.5mm |
| Lumen Efficiency | 80-110Lm / W | ||
| CRI | Ra>90 | ||
| Beam Angle | 15°/24°/38° | ||
| CCT | 2700 / 3000K / 4000K / 5000K / 6500K | ||
| Main Material | High Quality Aluminum | ||
| Heat Dissipating | Behind the COB chip, there is painted with thermal grease with 5.0W/mK heat-conductivity, guarantee a stable thermal conductivity. |
||
| Failure Rate | Failure Rate < 2% during 3 years | ||
| Input Voltage | AC220V, Customizable AC100-240V | ||
| Other | Brand LOGO on the product can be specified. Normally, the product is NON-Dimming version. Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee / 2.4G Remote Dimming (or Dimming & CCT Adjustable) |
||
| Warranty | 3 Years | ||
Application
W323 Family narrow beam angle of the LED wall washer light allows for focused and directional illumination, enabling precise highlighting of specific architectural or design elements on the wall. It provides enhanced visual impact and accentuates the desired areas.
First, LEDEAST V323 Family LED wall washer lights are ideal for showcasing products and specific areas in commercial settings, attracting attention and engaging customers.
Second,The deep cup design helps to minimize glare and unwanted reflections. By directing the light beam towards the wall surface and preventing excessive light spillage, it creates a more comfortable and visually pleasing environment.
Finally,LEDEAST V323 Family LED wall washer lights are suitable for architectural façade lighting, landscape lighting, commercial displays, stage lighting, interior decoration, art exhibitions, and lighting effect walls. They provide unique lighting effects and visual experiences, enhancing the aesthetic appeal and attractiveness of the space
Customization
1) Usually, it come with Black and white finish color, other finish colors also be customizable, such as gray/silvery.
2) W323 LED LED wall washer lights come with non-dimming, DALI dimming, 1~10V dimming, Tuya zigbee smart dimming, local knob dimming, bluetooth dimming etc for choose, support 0~100% brightness and 2700K~6500K color temperature adjustment.
3) LEDEAST provide with free laser marking service with buyer’s logo or brand, and other custom package service.
4) Customizable CRI≥95.
LEDEAST is a professional manufacturer and supplier on lighting field more than 15 years, we would like to provide with OEM & ODM service for clients all over the world. Any special requirements, don’t hesitate to tell us, LEDEAST will make it happen
