T073 Zoom LED Track spotlight
1)CT02 track light can adjust from 10 to 60 Degree be free by revolve the head of the lamp body(Zoomble lens) which makes this light more flexible for more choice.
1)Dimming：10%~100% brightness dimming, and 2700K WW to 6000K CW adjustable for kinds of scenes.
2)Dimming way: Tuya zigbee dimming, Dali dimming, 0~10V dimming etc for choose.
3)Stable led driver and Aluminum body profile and heat sink to extending the life span of lamps.
4)With high efficiency brand LED chip (Ra>90) for better lighting effect.
5)LED chips be painted with thermal grease with 5.0W/mK heat-conductivity to ensure a stable thermal conductivity.
6)Attenuated 10% during 3 years (Light on 13h/day)
7)355° rotation make the direction movement no limited , it’s suitable for any kind of decoration .
8)Black or white finish color for choose, customize gray/silvery and other colors be available.
Specifications
| Name | LED Track Light (Zooming & Dimming & CCT Adjustment) | ||
| Supplier | LEDEAST | ||
| Model | T073-15 | ||

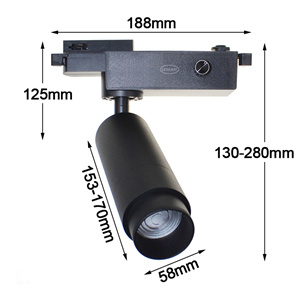

| Picture |  |
||
| Power | COB Max15W Ra > 90 | ||
| Dimming Way | Non Dimming | ||
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 20000K | ||
| Adapter | Customizable: 2-wire / 3-wire / 4-wire(3-Phase) track light adapter (or power driver box), and surface-mounted-base. |
||
| Beam Angle | 10-60º Zoomable | ||
| Finish Color | Black / White | ||
| Lumen Efficiency | 70-110 lm / w | ||
| Main Material | High Quality Aluminum | ||
| Heat Dissipating | Behind the COB chip, there is painted with thermal grease with 5.0W/mK heat-conductivity, guarantee a stable thermal conductivity. |
||
| Light Attenuation | Attenuated 10% during 3 years (Light on 13h/day) | ||
| Failure Rate | Failure Rate < 2% during 3 years | ||
| Input Voltage | AC220V, Customizable AC100-240V | ||
| Other | Normally, the product is NON-Dimming version. Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee / 2.4G Remote Dimming (or Dimming & CCT Adjustable) |
||
| Warranty | 3 Years | ||
Application
1)LEDEAST’s led track light could with single circuit 2 wires or 3lines track power adapter and 3-phase 4wires or 6 lines power track adapter, surface mounted (wall-mounted) installation also be ok as your required.
2)LEDEAST’s led track light could produce the lamp with different dimming type, such as: DALI dimming, 0-10V or 1-10V dimming, Tuya Zigbee protocol smart dimming, local knob dimming, 2700K WW to 6000K WW CCT Adjustable etc.
3)Laser marking with your brand or logo on lamps be available.
Customization
1)LEDEAST’s led track light could with single circuit 2 wires or 3lines track power adapter and 3-phase 4wires or 6 lines power track adapter, surface mounted (wall-mounted) installation also be ok as your required.
2)LEDEAST’s led track light could produce the lamp with different dimming type, such as: DALI dimming, 0-10V or 1-10V dimming, Tuya Zigbee protocol smart dimming, local knob dimming, 2700K WW to 6000K WW CCT Adjustable etc.
3)Laser marking with your brand or logo on lamps be available.
LEDEAST focusing in high quality indoor Commercial lighting start from 2012, and open intelligent lighting production line in 2018, we have kinds of products for choose and have keep developing new items to match with the trend of market.
In recent years, 48Vdc Magnetic Track Lighting System is become more and more popular, also be our advantage area.
We would like to provide with OEM & ODM service, we also could sell SKD products such as lamp body、power adapter、led driver、track rail etc for LED manufacturers in your local.
Now, our distributors all over the world, especially, be hot in Russia, Ukraine, Iran, Greece, Turkiye, Canada, Colombia, Vietnam, Thailand, India etc. Welcome share your any special ideas with us, LEDEAST will make it be true.
Installation
All LEDEAST’s track lamp not only can be installed on the 2/3/4/6wires track bar which be fixed on the ceiling, lamp also be fixed on the ceiling or wall with a round ceiling panel（ we call wall-mounted installation type）.
