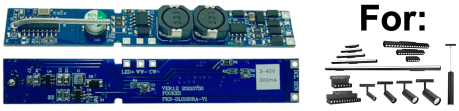

Remote Control 2.4G Dimming CW OutPut Low Voltage LED Driver LEDEAST DW48RC-30

Short Description:

Remote control 2.4G dimming LED driver is usually used in the following places:
Home lighting: It can be used in home environments such as bedrooms, living rooms, and kitchens
The remote control 2.4G dimmable LED driver is suitable for various places that need to flexibly adjust the brightness of LED lights to provide a comfortable, efficient and energy-saving lighting experience.

 Dimming:2.4G Dimming
Input Voltage: DC48V ±3%
Output Voltage: 8-42 VDC
Output Current: See content on right
Dimming Type: 0-10V dimming
Efficiency: >90%
Power Factor: 1
Working Temp.: -20 ~ +45°C
Working Humidity: 20% ~ 90% RH
Storage Temp.: -20 ~ +70C° Storage Humidity: 10% ~ 90% RH
MTBF: 50000 hours


Product Detail

Product Tags

2.4G-DW48RC-30
48V-driver

Specifications

Name DC48V 2.4G Dimming LED Driver
Supplier LEDEAST



Size: 80*13*12mm

Model DW48RC-30
DC Output Current Customizable Current:
150/200/250/300/350/400/450/500/550/600/700mA
Dimming 2.4G Dimming
DC Output DC Voltage: 8-42V DC
Line Regulation: ±2%
Load Regulation: ±2%
DC Input DC Input Voltage Range: 48VDC ±3%
DC Rated Voltage: 48VDC
Efficiency: >90%
Protection Short-circuit: Hiccup mode
No-load protection
Negative reverse connect protection
Environment Working Temp.: -20 ~ +45C°
Working Humidity: 20 ~ 90% RH, non-condensing
Storage Temp.: -20 ~ +70C°
Storage Humidity: 10% ~ 90% RH
Others IP Rate: IP22
MTBF: 50000 hours
Warranty 5 Years
