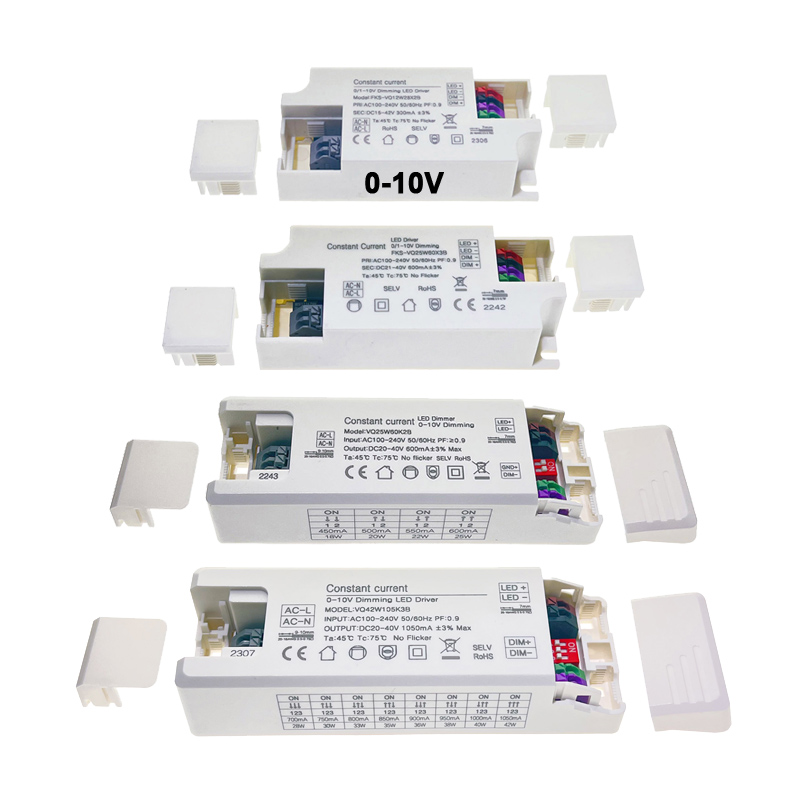

Conventional 100-240VAC 0/1-10V Dimmable LED Driver is a LED driver designed to be compatible with a wide range of input voltage, especially 100-240VAC. It operates with the popular 0-10V dimming control method. This driver is suitable for driving LED lighting fixtures that require dimming function. It allows the user to control the brightness of the connected LED light by adjusting the voltage level between 0 and 10V. At 0V, the LED light is off, and at 10V, the LED light reaches maximum brightness. The driver interprets the input voltage signal and adjusts the output current to achieve the desired level of dimming. The driver’s compatibility with various input voltages makes it versatile and suitable for use in different regions and in various electrical systems. It is commonly used in commercial and residential applications such as offices, retail spaces, restaurants and homes where dimming functionality is required for energy savings and ambiance.
Input Voltage: 100-240VAC
Output Voltage: 9-40VDC
Output Current: See content on right
Dimming Type: 0-10V Dimming
Efficiency: >90%
Power Factor: >0.9 (No Flicker)
Working ENV.: -20 ~ +45°C / 20% ~ 90% RH
Storage ENV.: -20 ~ +70C° / 10% ~ 90% RH
MTBF: 50000 hours
