Magnetic Linear Light Track Low Voltage Track Rail System LEDEAST TSMQ

Short Description:

A Magnetic Linear Light Track Low Voltage Track Rail System is a type of lighting system that utilizes magnetic tracks and low voltage power to provide an efficient and flexible lighting solution. Here are some key features and benefits of this system:

Magnetic tracks: The system uses magnetic tracks as a base for mounting and powering the lighting fixtures. This allows for easy installation, as the fixtures can be easily snapped into place along the track, eliminating the need for complex wiring.

Low voltage operation: The system operates at a low voltage, typically 12V or 24V, which offers several advantages. Firstly, it ensures electrical safety by reducing the risk of electric shocks. Secondly, it provides energy-efficient lighting with reduced power consumption compared to traditional high voltage systems.

Versatility: The magnetic track system is highly versatile, offering flexibility in lighting design and arrangement. Since the fixtures can be easily repositioned along the track, you can adjust the lighting configuration as needed, allowing for greater customization.

Compatibility with various fixtures: The system is compatible with a wide range of lighting fixtures, including linear LED lights, spotlights, pendant lights, and more. This versatility allows you to choose the appropriate fixtures for your specific lighting requirements and aesthetic preferences.

Easy installation and maintenance: The magnetic tracks simplify the installation process, as they can be mounted on ceilings, walls, or suspended from above. The low voltage operation also makes the system easier to maintain, with reduced risk and complexity during maintenance or replacement of fixtures.

Applications: This type of lighting system can be used in a variety of settings, including residential spaces, offices, retail stores, galleries, museums, and more. It is particularly useful for accent lighting, task lighting, or creating layered lighting effects.


Product Detail

Product Tags

【JB-M-Q】
TSMQ

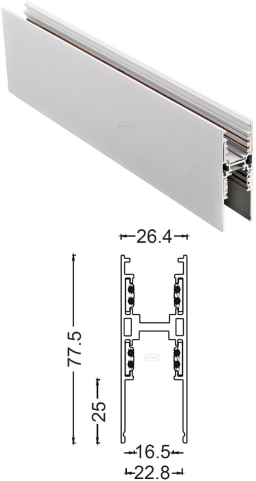

Name Magnetic Track Rail System
Supplier LEDEAST
Model TSMQ
Conductor Material Pure Red Copper (Ø2.3mm)
Insulation Material High-Density PVC
Body Material 1.8mm Thick Aluminum (High Hardness)
Max Load 16A
IP Grade IP20
Installation Suspension
Surface Treatment Double Baking Paint
Finish Color Black / White / Silver
Approve CB / CE / RoHS
Length 0.3m / 1m / 1.5m / 2m / 3m / 4m
be free customized
Packing Stronger Packaging Be Customized
Warranty 10 Years
Shell Material High Quality Aluminum (High Density, High Hardness)
Couplers In default, Feeder & End cap & Mounting Hardware are NOT included.
Optional Couplers:Straight coupler (I) / 90° coupler (L) / T coupler (T) / X coupler (X) / Flexible coupler / Hang Rope / End Feeder & Cup, etc.

magnet track rail (10)photobank(1) photobank(2) photobankphotobank(5)

With many years of experience in the development and manufacture of general lighting have made LEDEAST technology one of the most significant innovation and technology drivers in China.

With its solid platform of experience and know-how, LEDEAST technology is not only a manufacturer of lamps but also as a reliable partner for LED technologies in a wide range of lighting applications.

Our main products covers indoor spotlights, track systems, indoor recessed fixtures,  indoor wall-mounted and wall-recessed luminaries, par Lights, panel Light, Bulbs, LED Strip, LED high bay light etc.

You can trust for superior quality, innovative technology and superlative service. With me, with light!
