Magnet Linear Low Voltage 48V Magnetic Track Rail Series LEDEAST TSMD

Short Description:

The Magnet Linear Low Voltage 48V Magnetic Track Rail Series is a specific type of low voltage magnetic track rail system that operates on 48 volts. This track rail series is designed for use with low voltage track heads or fixtures that are specifically compatible with a 48V power supply.
With a 48V low voltage system, you can expect the following features and benefits:
Increased Efficiency: Low voltage systems are known for their energy efficiency, allowing you to save on electricity costs while still providing ample lighting.
Flexible Design: The magnetic track rail system offers flexibility in terms of placement of track heads and fixtures. You can easily move and adjust the lighting as needed without the need for complicated rewiring.
Easy Installation: The magnetic connection system simplifies the installation process. Track heads or fixtures can be easily attached and removed from the track rail using magnets, eliminating the need for additional wiring or tools.
Versatile Applications: The 48V low voltage track rail series is suitable for various lighting applications, including residential, commercial, and retail spaces. It offers a sleek and modern design that can enhance the overall aesthetics of any room.
Dimmable Lighting: Depending on the specific track heads or fixtures used with the system, you may have the option for dimmable lighting, allowing you to create different lighting moods and adjust the brightness levels as desired.

Name : Track Rail With Magnetic
Supplier : LEDEAST
Model : TSMD Track Rail With Magnetic
Installation : Recessed
Finish Color : Black / White / Silver
Approve : CB / CE / RoHS
Length : 0.3m / 1m / 1.5m / 2m / 3m / 4m Be Free Customized
Warranty : 10 Years


Product Detail

Product Tags

TSMD track rail (1)
TSMD track rail (2)
Name Magnetic Track Rail System
Supplier LEDEAST
Model TSMAR
Conductor Material Pure Red Copper (Ø2.3mm)
Insulation Material High-Density PVC
Body Material 1.8mm Thick Aluminum (High Hardness)
Max Load 16A
IP Grade IP20
Installation Recessed
Surface Treatment Double Baking Paint
Finish Color Black / White / Silver
Approve CB / CE / RoHS
Length 0.3m / 1m / 1.5m / 2m / 3m / 4m
be free customized

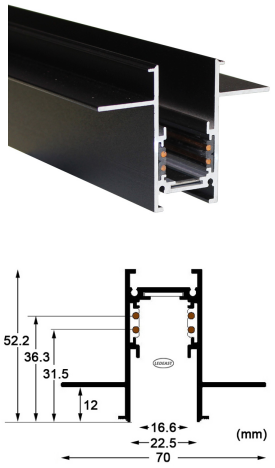

Cross Section Size 70*52.2mm
Packing Stronger Packaging Be Customized
Warranty 10 Years
Shell Material High Quality Aluminum (High Density, High Hardness)
Couplers In default, Feeder & End cap & Mounting Hardware are NOT included.
Optional Couplers:Straight coupler (I) / 90° coupler (L) / T coupler (T) / X coupler (X) / Flexible coupler / Hang Rope / End Feeder & Cup, etc.

magnet track rail (10)photobank(1) photobank(2) photobankphotobank(5)

With many years of experience in the development and manufacture of general lighting have made LEDEAST technology one of the most significant innovation and technology drivers in China.

With its solid platform of experience and know-how, LEDEAST technology is not only a manufacturer of lamps but also as a reliable partner for LED technologies in a wide range of lighting applications.

Our main products covers indoor spotlights, track systems, indoor recessed fixtures,  indoor wall-mounted and wall-recessed luminaries, par Lights, panel Light, Bulbs, LED Strip, LED high bay light etc.

You can trust for superior quality, innovative technology and superlative service. With me, with light!
