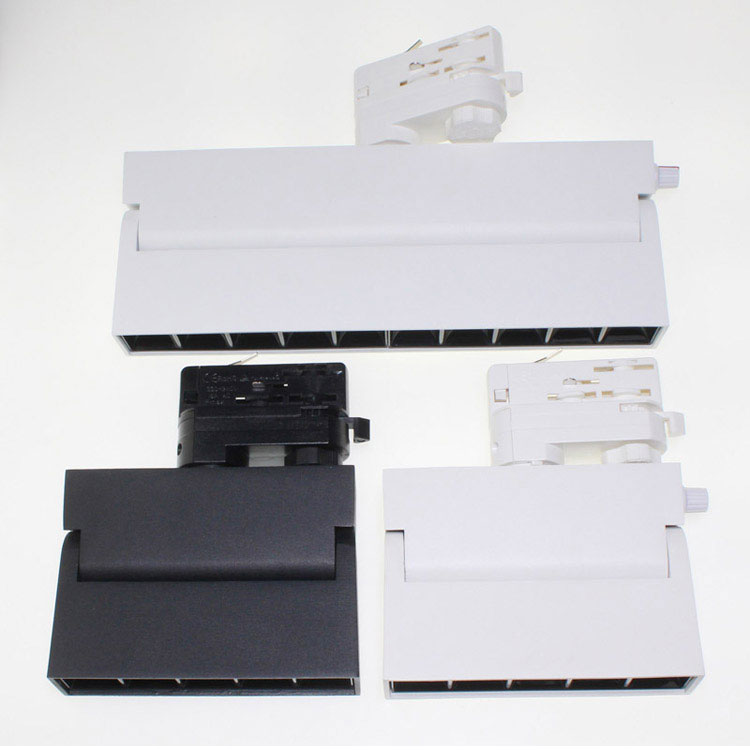

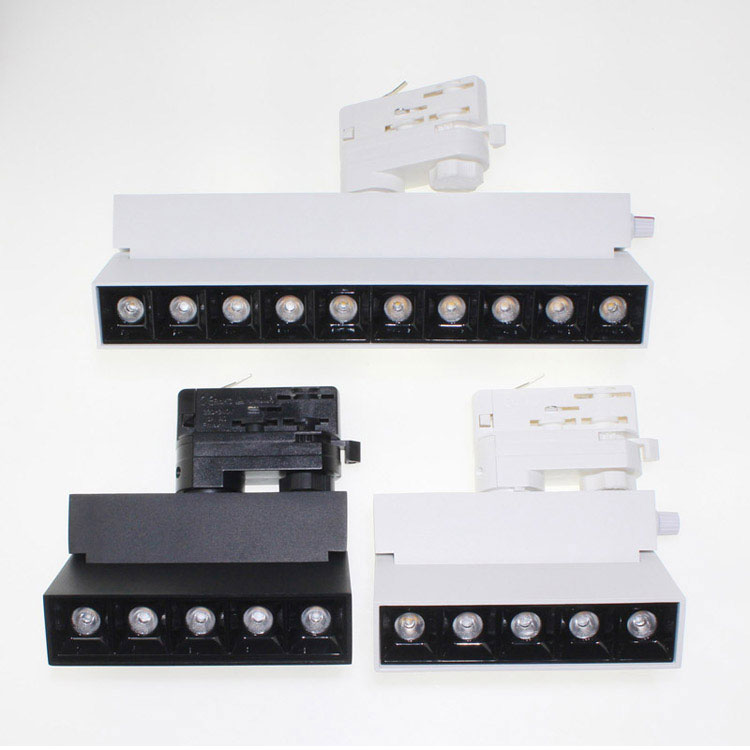

LEDEAST TL27F Family LED Square Track Light Head
Specifications
- Manufactured with high-quality materials for durability and long life;
- Soft and stable light source, no glare, no ultraviolet and infrared radiation, harmless to human health;
- Adjustable angle, easy to adjust the lighting direction; - High color rendering index, which can accurately restore the true color of the object.
LED Square Track Light Head is widely used in the lighting of commercial, exhibition, museum, gallery, office and other places.
Name | LED Track Light | ||
Supplier | LEDEAST | ||
Model | TL27F-12 | TL27F-12 | TL27F-20 |
Picture | |||
Power | COB 12W Ra>90(95) | COB 12W Ra>90(95) | COB 20W Ra>90(95) |
CCT | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 20000K | ||
Adapter | Customizable: 2-wire / 3-wire / 4-wire(3-Phase) track light adapter (or power driver box), and surface-mounted-base. |
||
Beam Angle | 15° / 30° | ||
Finish Color | Black / White | ||
Lumen Efficiency | 70-110 lm / w | ||
Main Material | High Quality Aluminum | ||
Heat Dissipating | Behind the COB chip, there is painted with thermal grease with 5.0W/mK heat-conductivity, guarantee a stable thermal conductivity. |
||
Light Attenuation | Attenuated 10% during 3 years (Light on 13h/day) | ||
Failure Rate | Failure Rate < 2% during 3 years | ||
Input Voltage | AC220V, Customizable AC100-240V | ||
Dimming Way | Brand LOGO on the product can be specified. Normally, the product is NON-Dimming version. Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee / 2.4G Remote Dimming (or Dimming & CCT Adjustable) |
||
Warranty | 3 Years |
Customization
1) Usually, it come with Black and white finish color, other finish colors also be customizable, such as gray/silvery.
2) TL27F series LED Square Track Light Head have non-dimming, DALI dimming, 1~10V dimming, Tuya zigbee smart dimming, local knob dimming, bluetooth dimming etc for choose, support 0~100% brightness and 2700K~6500K color temperature adjustment.
3) LEDEAST provide with free laser marking service with buyer’s logo or brand, and other custom package service.
4) Customizable CRI≥95.
LEDEAST is a professional manufacturer and supplier on the commercial lighting field more than 15 years, we would like to provide with OEM & ODM service for clients all over the world. Any special requirements, don’t hesitate to tell us,LEDEAST will make it happen.
