JG20 Magnet Track Light (Linear spot)

Short Description:

0-48V Dimming Magnetic Track Light System Linear Spot Lights Low Voltage Grille Spotlight

JG20 family linear magnetic track spotlight with a grille, which can effectively reduce glare and create a soft lighting effect, making the lighting more comfortable.


Product Detail

Product Tags

JG20-06
JG20-12
JG20-18
JG20-24

Application

LEDEAST’s JG20 Magnet Track Light (Linear spot) come with a high brightness and efficiency, which can providing a bright and comfortable lighting environment.

The JG20 magnetic track linear spot is good at illuminate artwork and exhibits, highlighting their unique features and details.

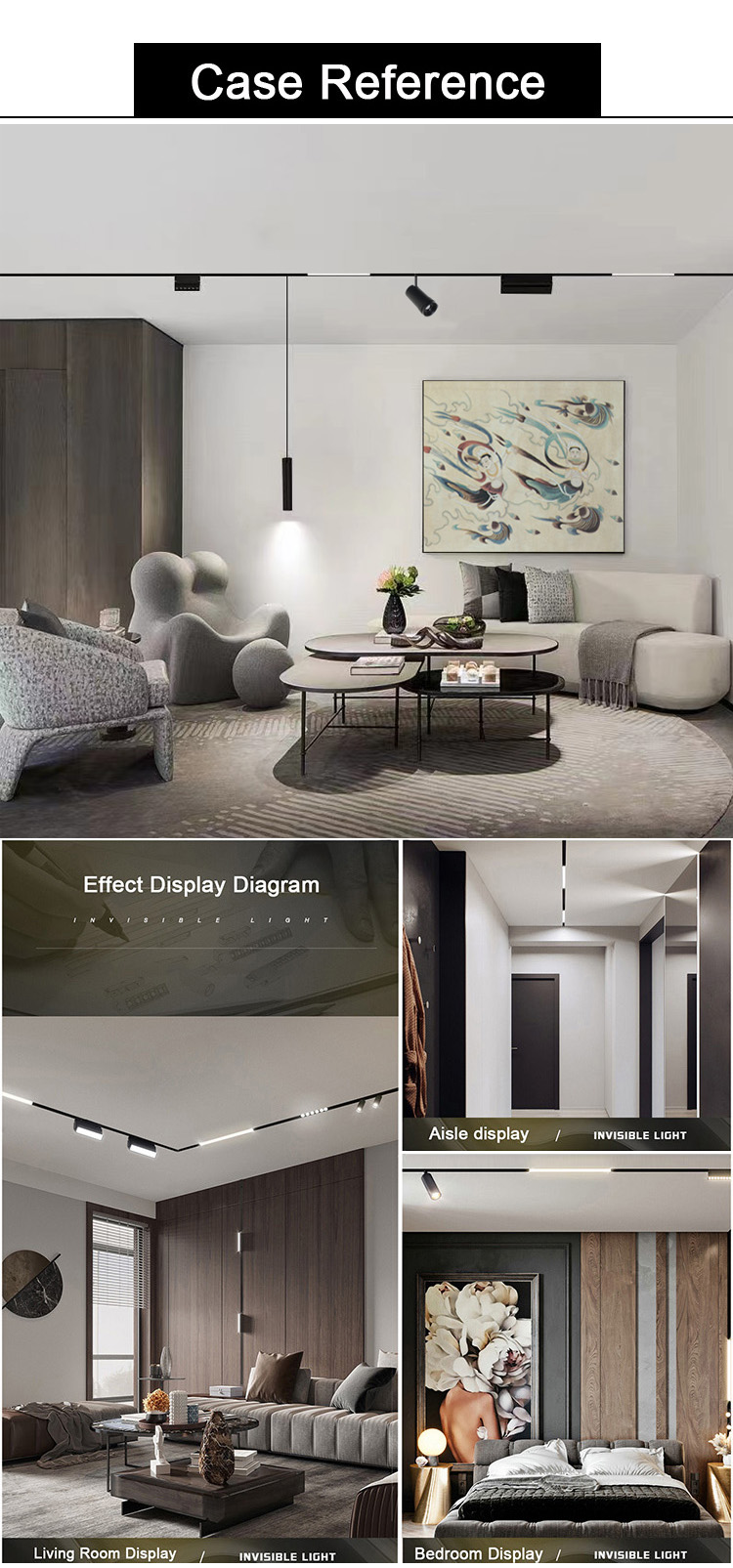

track light case

Specifications

LEDEAST’s JG20 Family Magnet Track Light (Linear spot) has a simple and generous appearance and with four sizes to match different objects, make the decoration of the overall space more unified.

JG20 has high CRI LED light source, which can restore the true color of objects, making the lighting more natural and realistic.

Anyway, The light fixture JG20 be suitable for home decoration, museum, gallery, retail store , club, showroom, and other public spaces, greatly reduce the inventory of our distributors.

Name

LED Magnet Track Light (Linear spot)

Supplier

LEDEAST

Model

JG20-06

JG20-12

JG20-18

JG20-24


pp

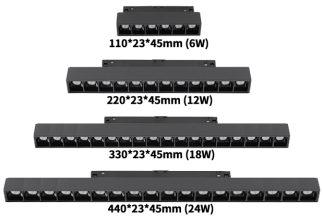

Size

110*23*45mm

220*23*45mm

330*23*45mm

440*23*45mm

LED & Power

6W (Ra>90)

12W (Ra>90)

18W (Ra>90)

24W (Ra>90)

Beam Angle

24°(Optional: 36°)

CCT

2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 20000K

Lumen Efficiency

70-110 Lm / W

Input Voltage

DC48V (Customizable DC24V)

IP Grade

IP20

Installation

Compatible with 20# magnetic track rail

Finish Color

Black / White

Main Material

High Quality Aluminum

Heat Dissipating

Behind the COB chip, there is painted with thermal grease with 5.0W/mK
heat-conductivity, guarantee a stable thermal conductivity.

Light Attenuation

Attenuated 10% during 3 years (Light on 13h/day)

Failure Rate

Failure Rate < 2% during 3 years

Other

Brand LOGO on the product can be specified.
Normally, the product is NON-Dimming version.
Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee /
2.4G Remote Dimming (or Dimming & CCT Adjustable)

Certificate

CB / CE / RoHS

Warranty

3 Years

Other

With the growing focus on user experience and well-being, LEDEAST's lighting manufacturers are increasingly developing lighting solutions that prioritize user comfort, health, and safety. Magnetic track grille lights with their soft lighting and reduced glare are well suited to meeting these needs.
 Magnet track lighting also is the market trend start from 2019, be more and more popular for modern offices and residential areas with minimalist decoration style. Any doubt, feel free contact us!
