DC48V LED Linear Track Spot Lighting System 3-Phase 1m 2m 3m Magnetic Track Rail LEDEAST TSMYH

Short Description:

Three-phase magnetic track rail refers to a lighting track system that uses three-phase power supply. This type of track is commonly used for track lighting installations in commercial and industrial settings. The “three-phase” aspect of slide rails refers to the three separate conductors built into the track. These conductors allow the different lighting circuits to be controlled independently, providing flexibility for creating a variety of lighting arrangements and effects.
Power Supply: The system operates on a DC48V power supply, which ensures efficient and reliable performance.
LED Linear Track Spots: The system includes LED linear track spotlights that are designed to be easily installed and adjusted along the magnetic track rail. These spotlights provide directional and focused lighting, making them suitable for accent lighting or illuminating specific areas.
Length Options: The magnetic track rail is available in three length options: 1m, 2m, and 3m. This ensures that you can customize the track length to suit your specific space requirements.

Name : Magnetic Rail Track Lighting
Supplier : LEDEAST
Model : TSMYH Magnetic Rail Track Lighting
Installation : Recessed / Wall Mounted / Suspension
Finish Color : Black / White
Approve : CB / CE / RoHS
Length : 0.3m / 1m / 1.5m / 2m / 3m / 4m be free customized
Warranty : 10 Years


Product Detail

Product Tags

Magnetic Track Light (2)
photobank(2)
Name Magnetic Track Rail System
Supplier LEDEAST
Model TSMYH
Conductor Material Pure Red Copper (Ø2.3mm)
Insulation Material High-Density PVC

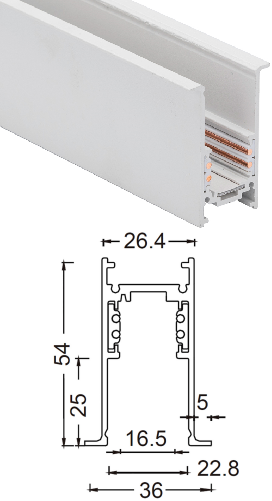

Body Material 1.8mm Thick Aluminum (High Hardness)
Max Load 16A
IP Grade IP20
Installation Recessed / Wall Mounted / Suspension
Surface Treatment Double Baking Paint
Finish Color Black / White / Silver
Approve CB / CE / RoHS
Length 0.3m / 1m / 1.5m / 2m / 3m / 4m
be free customized
Packing Stronger Packaging Be Customized
Warranty 10 Years
Shell Material High Quality Aluminum (High Density, High Hardness)
Couplers In default, Feeder & End cap & Mounting Hardware are NOT included.

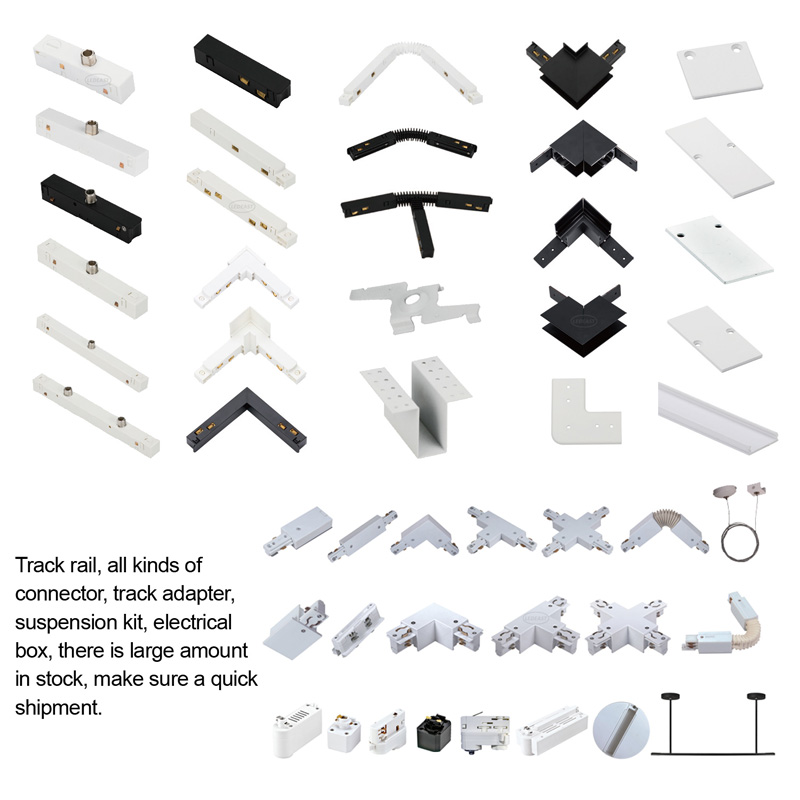

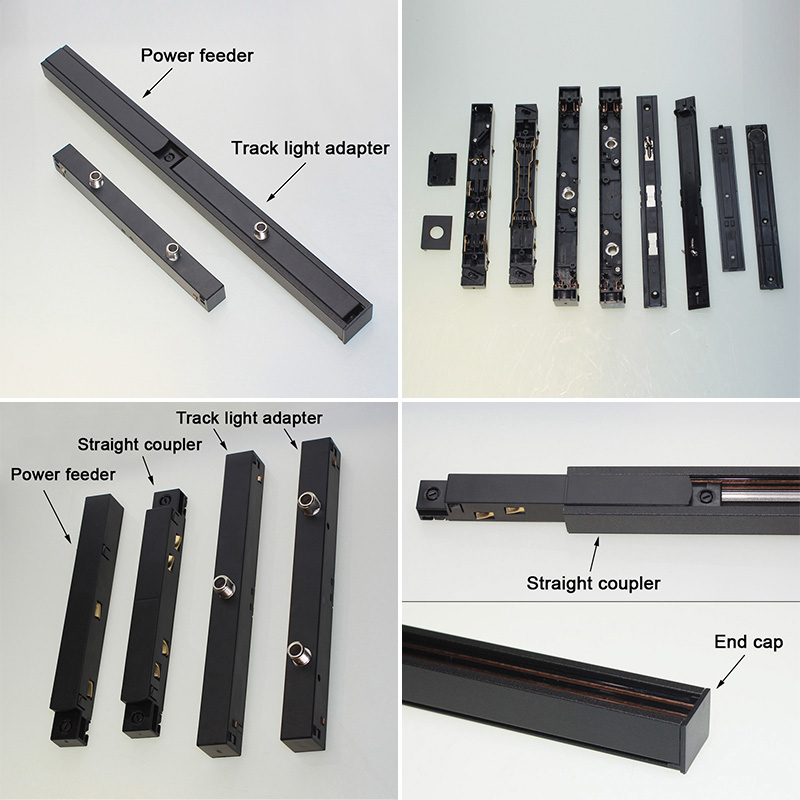

Optional Couplers:Straight coupler (I) / 90° coupler (L) / T coupler (T) / X coupler (X) / Flexible coupler / Hang Rope / End Feeder & Cup, etc.

magnet track rail (10)photobank(1) photobank(2) photobankphotobank(3)
