DC48V Dali Dimming LED Driver With DIP Switch S30DA35/S30DA70

Short Description:

DC48V Dali-Dimming LED Driver allows you to control the brightness of LED lights using Dali dimming technology. The driver operates from a 48V DC supply and is compatible with the Dali dimming system. It is commonly used in commercial and architectural lighting applications that require precise control of brightness levels.

Dimming Range:0-100%
PWM:PWM>3600Hz
DALI:DALI 2.0 Standard Protocol, DT8 (IEC62386-101/102/107)
DC Voltage:9-40V DC
DC Output:Line Regulation: ±2%
Load Regulation: ±2%
DC Input:DC Rated Voltage: 48VDC
Efficiency: >95%
Working Temp.: -20 ~ +45C°
Working Humidity: 20 ~ 90% RH, non-condensing
Storage Temp.: -20 ~ +70C°
Storage Humidity: 10% ~ 90% RH


Product Detail

Product Tags

DALI-S30DA35
48V-driver

Specifications

Name DC48V DALI Dimming LED Driver
Supplier LEDEAST

Size: 125*14.5*11mm

Model S30DA35 S30DA70
DC Output Current DIP Switch:
150mA:(1: OFF, 2: OFF,3: OFF)
180mA:(1: OFF, 2: OFF,3: ON)
200mA:(1: OFF, 2: ON,3: OFF)
250mA:(1: OFF, 2: ON,3: ON)
280mA:(1: ON, 2: OFF,3: OFF)
300mA:(1: ON, 2: OFF,3: ON)
320mA:(1: ON, 2: ON,3: OFF)
350mA:(1: ON, 2: ON,3: ON)
DIP Switch:
350mA:(1: OFF, 2: OFF,3: OFF)
400mA:(1: OFF, 2: OFF,3: ON)
450mA:(1: OFF, 2: ON,3: OFF)
500mA:(1: OFF, 2: ON,3: ON)
550mA:(1: ON, 2: OFF,3: OFF)
600mA:(1: ON, 2: OFF,3: ON)
650mA:(1: ON, 2: ON,3: OFF)
700mA:(1: ON, 2: ON,3: ON)
Dimming DALI Dimming
DC Output DC Voltage: 9-40V DC
Line Regulation: ±2%
Load Regulation: ±2%
DC Input DC Input Voltage Range: 48VDC ±3%
DC Rated Voltage: 48VDC
Efficiency: >90%
Protection Short-circuit: Hiccup mode
No-load protection
Negative reverse connect protection
Environment Working Temp.: -20 ~ +45C°
Working Humidity: 20 ~ 90% RH, non-condensing
Storage Temp.: -20 ~ +70C°
Storage Humidity: 10% ~ 90% RH
Others IP Rate: IP22
MTBF: 50000 hours
Warranty 5 Years

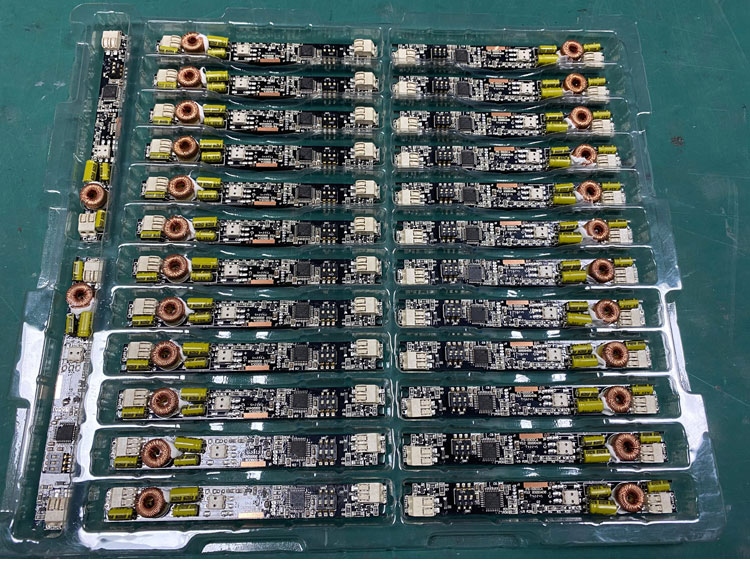

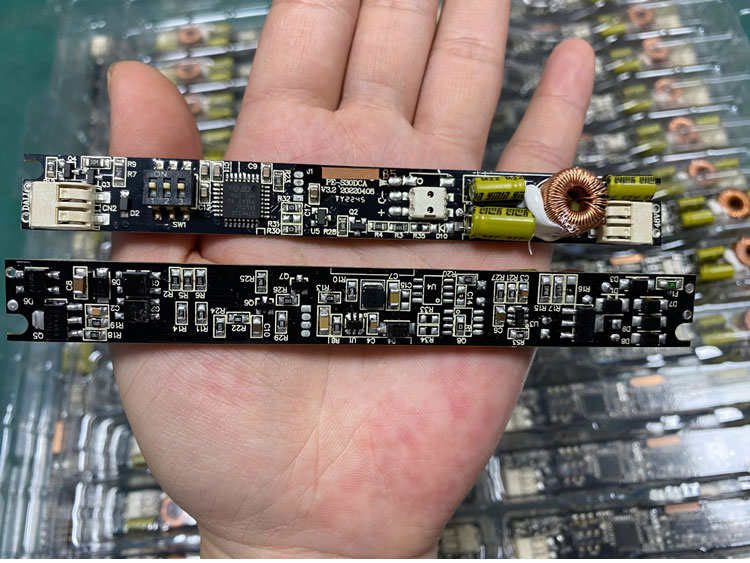

OEM led driver (2) S30DA35-dali-led-driver-(1) S30DA35-dali-led-driver-(6)
