DC48V 0-10V LED Driver For Low Voltage Magnetic Track System P62-10V-DIM01

Short Description:

The P62-10V-DIM01 is designed specifically for LED lighting applications and provides a constant voltage output of DC48V. It is compatible with low voltage magnetic track systems and supports 0-10V dimming control, allowing for smooth and adjustable lighting levels.

This LED driver offers a high efficiency of up to 90% and a built-in power factor correction (PFC) function, ensuring optimal energy efficiency and reducing power consumption. It has a wide operating temperature range, allowing for reliable performance in various environments.

Dimming: 0-10V Dimming
DC Output DC Voltage: 3-40V DC
Line Regulation: ±2%
Load Regulation: ±2%
DC Input DC Input Voltage Range: 48VDC ±3%
DC Rated Voltage: 48VDC
Efficiency: >90%
Protection Short-circuit: Hiccup mode
No-load protection
Negative reverse connect protection
Environment Working Temp.: -20 ~ +45C°
Working Humidity: 20 ~ 90% RH, non-condensing
Storage Temp.: -20 ~ +70C°
Storage Humidity: 10% ~ 90% RH


Product Detail

Product Tags

P62-10V
48V-driver

Specifications

Name DC48V 0-10V Dimming LED Driver
Supplier LEDEAST

Size: 125*14*9mm

Model P62-10V-DIM01-A P62-10V-DIM01-B P62-10V-DIM01-C
DC Output Current DIP Switch:
300mA: (1: OFF, 2: OFF)
500mA: (1: ON, 2: OFF)
500mA: (1:OFF, 2: ON )
700mA: (1: ON, 2: ON)
DIP Switch:
350mA: (1: OFF, 2: OFF)
500mA: (1: ON, 2: OFF)
600mA: (1:OFF, 2: ON )
700mA: (1: ON, 2: ON)
DIP Switch:
300mA: (1: OFF, 2: OFF)
500mA: (1: ON, 2: OFF)
600mA: (1:OFF, 2: ON )
700mA: (1: ON, 2: ON)
Dimming 0-10V Dimming
DC Output DC Voltage: 3-40V DC
Line Regulation: ±2%
Load Regulation: ±2%
DC Input DC Input Voltage Range: 48VDC ±3%
DC Rated Voltage: 48VDC
Efficiency: >90%
Protection Short-circuit: Hiccup mode
No-load protection
Negative reverse connect protection
Environment Working Temp.: -20 ~ +45C°
Working Humidity: 20 ~ 90% RH, non-condensing
Storage Temp.: -20 ~ +70C°
Storage Humidity: 10% ~ 90% RH
Others IP Rate: IP22
MTBF: 50000 hours
Warranty 5 Years

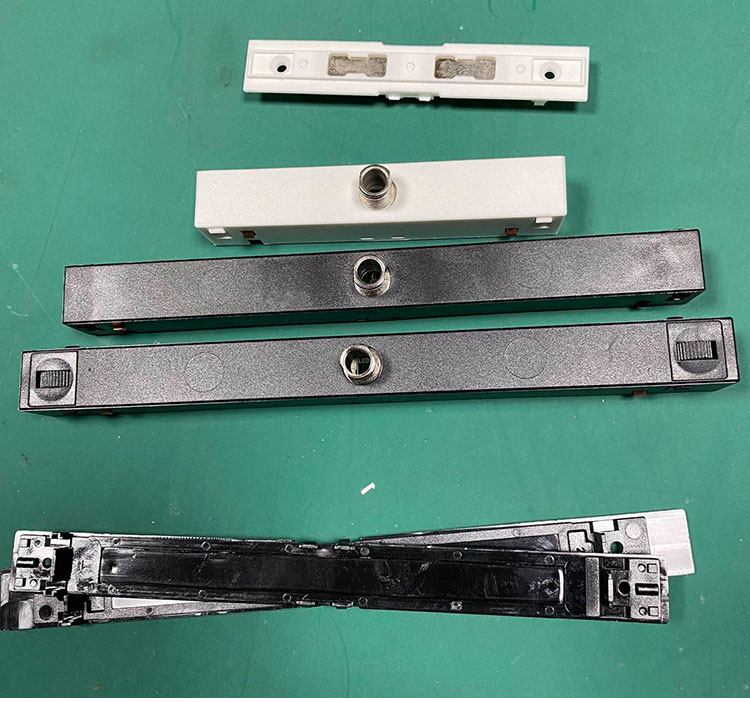

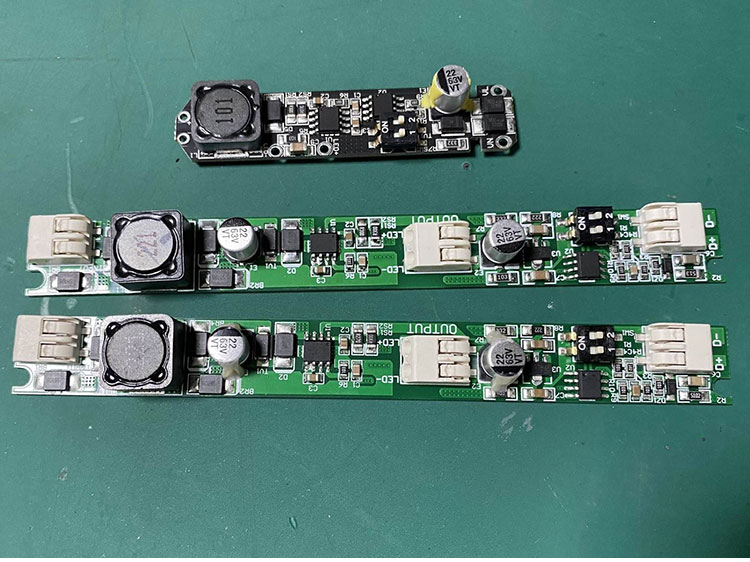

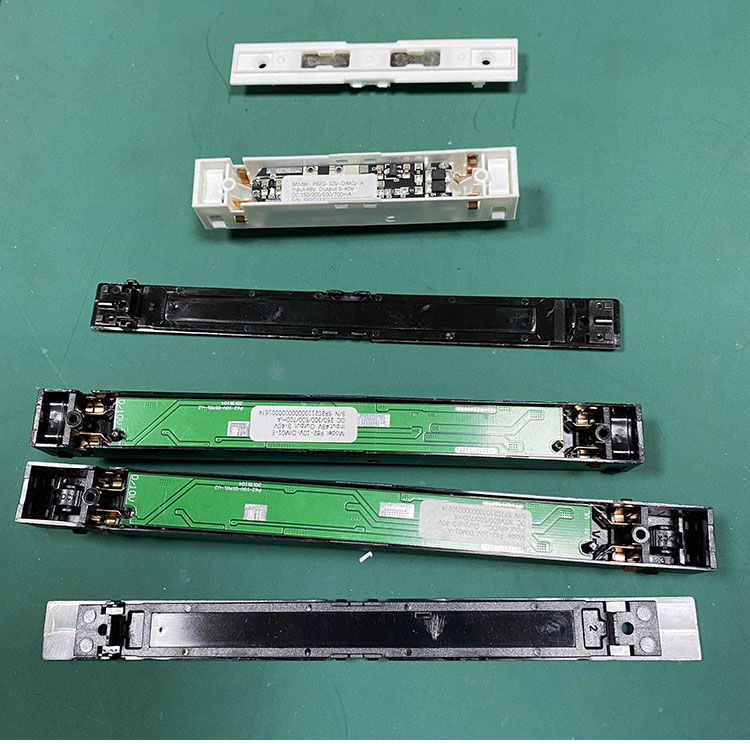

OEM led driver (2)P62-10V-DIM02-A-(2)20220218192121202202181921030
