CT03 Shapeable LED track light

Short Description:

LEDEAST’s CT03 shapeable LED track light is a professional museum lighting product or any special lighting purpose that requires the light output to be a round shape. It could cut out four different sizes of circular facula, and the maximum spot diameter can reach 1.5 meters if the distance is 5 meters.

Besides, this 15W shapeable led track lamp use high efficiency COB LED chips (CRI90) for excellent lighting effect, Aluminum body profile and heat sink to support long span life of the light.


Product Detail

Product Tags

1)Rotatable 355° & tiltable 90°:
2)CCT optional : 2700K, 3000k, 3500K, 4000K, 5000K, 6500K etc.
3)LED Driver: Isolated Power Supply (Fliker Free)
4)Heat-dissipating: High quality Aluminum (Cold Forging)
5)Finish color: Black / White.
6)Track adapter: 2 wires / 3 wires / 4 wires (3 phase) and wall-mounted type.
7)Low power and small size lamp, be exquisite and cheap.

CT03 Shapeable LED track light (4)
CT03 Shapeable LED track light (5)

Specifications

Name

LED Track Light

Supplier

LEDEAST

Model

CT03-15

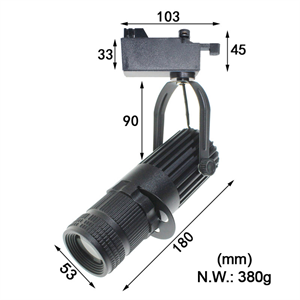

acfvav

Power

COB 15W  Ra>90(95)

CCT

2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 20000K

Adapter

Customizable: 2-wire / 3-wire / 4-wire(3-Phase) track light adapter
(or power driver box), and surface-mounted-base.

Beam Angle

Four Size of Round

Finish Color

Black / White

Lumen Efficiency

70-110 lm / w

Main Material

High Quality Aluminum

Heat Dissipating

Behind the COB chip, there is painted with thermal grease with 5.0W/mK
heat-conductivity, guarantee a stable thermal conductivity.

Light Attenuation

Attenuated 10% during 3 years (Light on 13h/day)

Failure Rate

Failure Rate < 2% during 3 years

Input Voltage

AC220V, Customizable AC100-240V

Dimming Way

Brand LOGO on the product can be specified.
Normally, the product is NON-Dimming version.
Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee /
2.4G Remote Dimming (or Dimming & CCT Adjustable)

Warranty

3 Years

Application

LEDEAST’s CT03 shapeable LED track light is as an economical display lighting, be popular for Cafe, flower shop, cake room and other street shops to highlight the ADs、logo、image of the store. This lamp also can be used in residential area to display the calligraphy and painting or artwork be placed in the hall, living room and corridor etc.

Customization

1)LEDEAST’s led track light could with single circuit 2 wires or 3 lines track power adapter and 3-phase 4 wires or 6 lines power track adapter, surface mounted (wall-mounted) installation also be ok as your required.
2)Laser marking with your brand or logo on lamps be available.
3)Customize other color temperature (CCT: 2700k/3000k/4000k/5000k/6000k/10000k) be ok.
4)Customize gray/silvery and other colors be available for LEDEAST.
5)We also have other high-class and high power shapeable track light and other smart dimming LED lights.
LEDEAST focusing in high quality indoor Commercial lighting start from 2012, and open intelligent lighting production line in 2018, we have kinds of products for choose and have keep developing new items to match with the trend of market.
Welcome share your any special ideas with us, LEDEAST will make it be true.

CT03 Shapeable LED track light (5)
CT03 Shapeable LED track light (7)

Installation

1)If one place only need 1 pcs CT03 shapeable LED track light, we recommend wall-mounted installation, it’s to say the lamp with a round ceiling panel to fix on the ceiling or wall.
2)If you need few piece lamps in the small area, with track adapter for CT03 shapeable lamp be better, we have 2 wires / 3 wires / 4 wires (3phase) adapter for choose.
