CT01 LED Track Light Zoomable

Short Description:

CT01 LED track light with multi-function design: zoomable lens for 15-60 degree beam angle, optional CW WW CCT adjustable and brightness dimming, it come with professional optical effect since there is a zoom lens, and it offers narrow angle 15°to wide angle 60°, it’s a excellent choice for the lighting in shop, museum, gallery, etc.


Product Detail

Product Tags

ledeast led track light1

Specifications

Name LED Track Light
Supplier LEDEAST
Model CT01-T12 CT01-12
Picture  product-1  product-1
Power COB 12W  Ra>90(95)
CCT 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 20000K

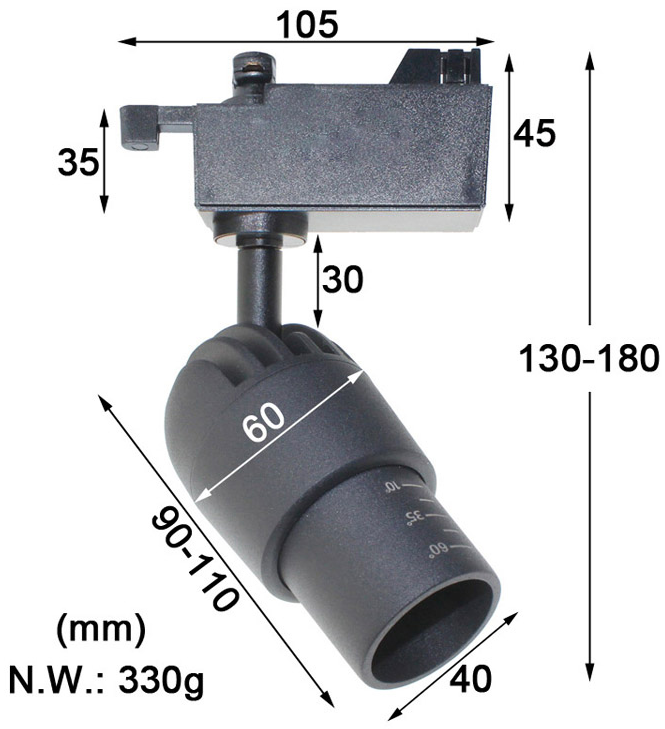

Adapter Customizable: 2-wire / 3-wire / 4-wire(3-Phase) track light adapter
(or power driver box), and surface-mounted-base.
Beam Angle 15-60º Zoomable
Finish Color Black / White
Lumen Efficiency 70-110 lm / w
Main Material High Quality Aluminum
Heat Dissipating Behind the COB chip, there is painted with thermal grease with 5.0W/mK
heat-conductivity, guarantee a stable thermal conductivity.
Light Attenuation Attenuated 10% during 3 years (Light on 13h/day)
Failure Rate Failure Rate < 2% during 3 years
Input Voltage AC220V, Customizable AC100-240V
Dimming Way Brand LOGO on the product can be specified.
Normally, the product is NON-Dimming version.
Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee /
2.4G Remote Dimming (or Dimming & CCT Adjustable)
Warranty 3 Years

Application

The track light CT01 usually be used in where need to be important display, interior, focus on the display area which you want to pointed, and the light will be on the object or area, or something else and in high lighted, like home, museum lighting, art lighting, It’ll be a good choice for these uses.

3

Customization

LEDEAST’s track light all can be with single circuit 2 wires or 3 wires and 3-phase 4 wires or 6 wires power adapter, LEDEAST can make whatever adapter you want, and for the dimming way, LEDEAST have optional as: DALI, 0-10V, 1-10V, CW WW CCT Adjustable, Zigbee protocol, TUYA smart control, local knob dimming, etc, as many kinds as you know, LEDEAST make it happen.

CT01 spotlight (11)
CT01 spotlight (12)

Installation

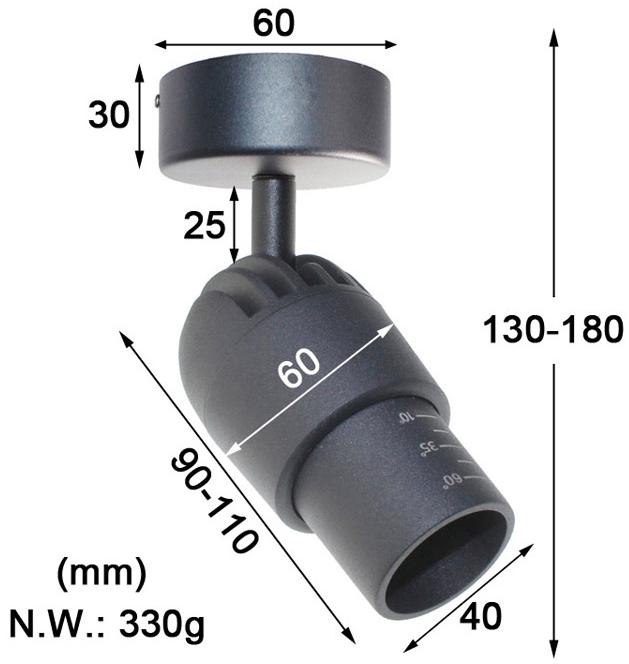

The installation way is not only can be with a track rail, but also can be made in a wall mounted way, to mount on the wall and make a spot lighting to the area you want display.
