Low Voltage Magnetic Track Red Copper Conductor 48V Aluminum Track Rail LEDEAST TSMS

Short Description:

Low-voltage magnet track systems with copper conductors and 48V aluminum rails offer a specific set of features and benefits.

Here’s what you can expect from such a system: Low Voltage Operation: 48V low voltage systems are safer to operate than standard line voltage systems, reducing the risk of electric shock. It also provides efficient energy consumption.

Magnetic Track Design: Magnetic tracks allow for easy installation and repositioning of track lights along the track. This design eliminates the need for complex wiring and electrical work.

Red Copper Conductor: Red Copper is known for its excellent electrical conductivity, ensuring efficient power transmission and minimal power loss along the track.

Aluminum Track: Aluminum is a lightweight and durable material commonly used in track lighting systems. It has good heat dissipation properties to prevent the track light from overheating.

Customizability: The modular nature of the magnetic track system allows for easy customization. You can add or remove track lights, adjust spacing, and create unique lighting configurations based on your specific requirements.

Versatile applications: Low-voltage magnetic rail systems using copper conductors and aluminum rails can be used in a variety of environments, including commercial spaces such as exhibition halls, museums, retail stores, or residential environments.

Name : Low Voltage Magnetic Track
Supplier : LEDEAST
Model : TSMS
Installation : Wall Mounted / Spspension
Finish Color : Black / White
Approve : CB / CE / RoHS
Length : 0.3m / 1m / 1.5m / 2m / 3m / 4m be free customized
Warranty : 10 Years
Low Voltage Magnetic Track System


Product Detail

Product Tags

LED Track Lighting  (1)
LED Track Lighting  (2)

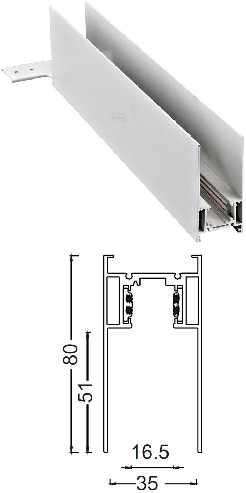

Name Magnetic Track Rail System
Supplier LEDEAST
Model TSMS
Conductor Material Pure Red Copper (Ø2.3mm)
Insulation Material High-Density PVC
Body Material 1.8mm Thick Aluminum (High Hardness)
Max Load 16A
IP Grade IP20
Installation Wall Mounted / Suspension
Surface Treatment Double Baking Paint
Finish Color Black / White / Silver
Approve CB / CE / RoHS
Length 0.3m / 1m / 1.5m / 2m / 3m / 4m
be free customized
Packing Stronger Packaging Be Customized
Warranty 10 Years
Shell Material High Quality Aluminum (High Density, High Hardness)
Couplers In default, Feeder & End cap & Mounting Hardware are NOT included.
Optional Couplers:Straight coupler (I) / 90° coupler (L) / T coupler (T) / X coupler (X) / Flexible coupler / Hang Rope / End Feeder & Cup, etc.

magnet track rail (10)photobank(1) photobank(2) photobankMphotobank(5)

With many years of experience in the development and manufacture of general lighting have made LEDEAST technology one of the most significant innovation and technology drivers in China.

With its solid platform of experience and know-how, LEDEAST technology is not only a manufacturer of lamps but also as a reliable partner for LED technologies in a wide range of lighting applications.

Our main products covers indoor spotlights, track systems, indoor recessed fixtures,  indoor wall-mounted and wall-recessed luminaries, par Lights, panel Light, Bulbs, LED Strip, LED high bay light etc.

You can trust for superior quality, innovative technology and superlative service. With me, with light!
