CT02 10~60D Zoomable LED Tracklight

Short Description:

Good design, High Brightness, life span, and quality assurance policy are the main factors need be considered for a good LED Lamps.

We are proud to tell you, LEDEAST’s CT02 zoomable led track light can offer you an excellent commercial lighting solution to meet all this requirements. Reasons as below:


Product Detail

Product Tags

CT02 Zoomable LED Tracklight (3)
CT02 Zoomable LED Tracklight (4)

Specifications

Name

LED Track Light

Supplier

LEDEAST

Model

CT02-12

CT02-T12

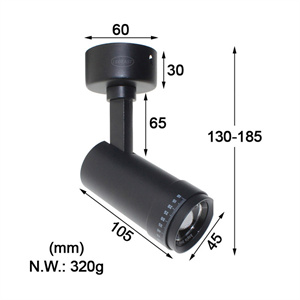

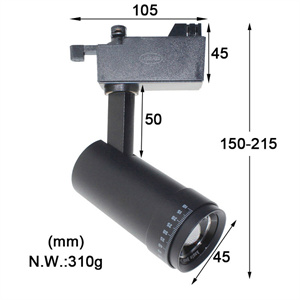

 acasv (2)  acasv (1)

Power

COB 12W  Ra>90(95)

CCT

2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 20000K

Adapter

Customizable: 2-wire / 3-wire / 4-wire(3-Phase) track light adapter
(or power driver box), and surface-mounted-base.

Beam Angle

10-60º Zoomable

Finish Color

Black / White

Lumen Efficiency

70-110 lm / w

Main Material

High Quality Aluminum

Heat Dissipating

Behind the COB chip, there is painted with thermal grease with 5.0W/mK
heat-conductivity, guarantee a stable thermal conductivity.

Light Attenuation

Attenuated 10% during 3 years (Light on 13h/day)

Failure Rate

Failure Rate < 2% during 3 years

Input Voltage

AC220V, Customizable AC100-240V

Dimming Way

Brand LOGO on the product can be specified.
Normally, the product is NON-Dimming version.
Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee /
2.4G Remote Dimming (or Dimming & CCT Adjustable)

Warranty

3 Years

Application

As a high-end indoor lighting fixture, usually, Ledeast’s CT02 zoomable LED Track Light be used in where need to be important display, or focus on the display area which you want to pointed, and the light will be on the object or area, or something else and in high lighted like famous paintings and antiques.
It’s the best choice for museum, art gallery, villa, private club, luxury stores, high-class restaurant etc.

CT02 Zoomable LED Tracklight (2)
CT02 Zoomable LED Tracklight (2)

Customization

1)LEDEAST’s led track light could with single circuit 2 wires or 3 lines track power adapter and 3-phase 4wires or 6 lines power track adapter, surface mounted (wall-mounted) installation also be ok as your required.
2)LEDEAST’s led track light could produce the lamp with different dimming type, such as: DALI dimming, 0-10V or 1-10V dimming, Tuya Zigbee protocol smart dimming, local knob dimming, 2700K WW to 6000K WW CCT Adjustable etc.
3)Laser marking with your brand or logo on lamps be available.
LEDEAST focusing in high quality indoor Commercial lighting start from 2012, and open intelligent lighting production line in 2018, we have kinds of products for choose and have keep developing new items to match with the trend of market.
In recent years, 48Vdc Magnetic Track Lighting System is become more and more popular, also be our advantage area.
We would like to provide with OEM & ODM service, we also could sell SKD products such as lamp body、power adapter、led driver、track rail etc for LED manufacturers in your local.
Now, our distributors all over the world, especially, be hot in Europe, America (Ukraine, Greece, Turkiye, Canada, Colombia, Vietnam, Thailand, India) etc. Welcome share your any special ideas with us, LEDEAST will make it be true.

Installation

All LEDEAST’s track lamp not only can be installed on the 2/3/4/6 wires track bar which be fixed on the ceiling, lamp also be fixed on the ceiling or wall with a round ceiling panel(we call wall-mounted installation type).
