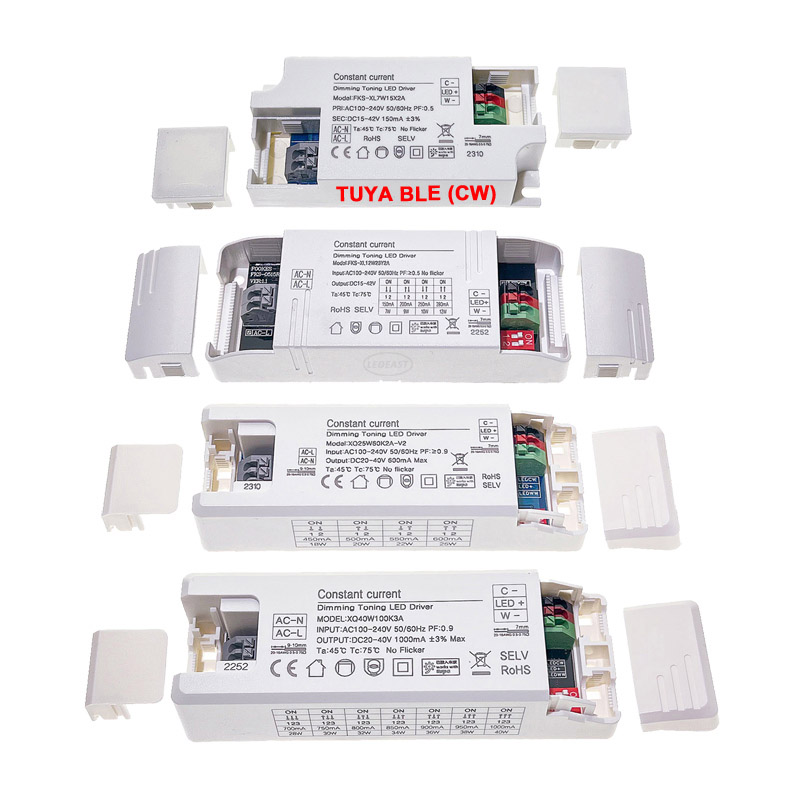

The 100-240VAC TUYA BLE Dimmable Smart Control C-W Output LED Driver is a device that allows you to control LED lighting systems wirelessly using Bluetooth Low Energy (BLE) technology. This LED driver is specifically designed to operate with LED lights that require a 100-240V AC power supply.
Here are some key features and functionalities of the TUYA BLE Dimmable Smart Control C-W Output LED Driver:
Voltage Compatibility: The LED driver is compatible with a wide range of input voltages, from 100V to 240V AC. This makes it suitable for various regions and allows for versatile use with LED lighting applications that require different voltage ranges.
TUYA Smart Control: The LED driver is integrated with TUYA’s smart control technology, which enables you to control and manage your LED lights wirelessly using a smartphone or tablet via the TUYA mobile app. With the app, you can turn the lights on/off, adjust brightness levels, and create schedules or automation scenarios for your LED lighting system.
Bluetooth Low Energy (BLE): The LED driver utilizes Bluetooth Low Energy technology, which is energy-efficient and provides a reliable wireless connection between the driver and your mobile device. BLE also allows for easy pairing and control of your LED lights within a reasonable distance range.
Dimming Capabilities: The TUYA BLE Dimmable Smart Control C-W Output LED Driver offers dimming capabilities, allowing you to adjust the brightness levels of your LED lights. This enables you to create different lighting atmospheres, vary the intensity of the light output, or conserve energy when lower light levels are desired.
Easy Installation: The LED driver is designed for easy installation and integration with your existing LED lighting setup. It typically connects to the power input of your LED lights, and depending on the specific model, it may also have output channels to control the color temperature (colder to warmer light) of the LED lights.
Compatibility: The TUYA BLE Dimmable Smart Control C-W Output LED Driver is designed to work with TUYA’s ecosystem of smart devices and services. This allows you to integrate and control your LED lighting system alongside other TUYA-enabled devices in your smart home or commercial setup.
Input Voltage: 100-240VAC
Output Voltage: 9-40VDC
Dimming Type: TUYA BLE Control
(Dimming / CCT Adjustable)
Efficiency: >90% Power Factor: >0.9 (No Flicker)
Working ENV.: -20 ~ +45°C / 20% ~ 90% RH
Storage ENV.: -20 ~ +70C° / 10% ~ 90% RH
MTBF: 50000 hours Control Mode: APP (Group / Single) / Remote control /
Voice control (Alexa / Google Home)
APP: Tuya / Smart Life
