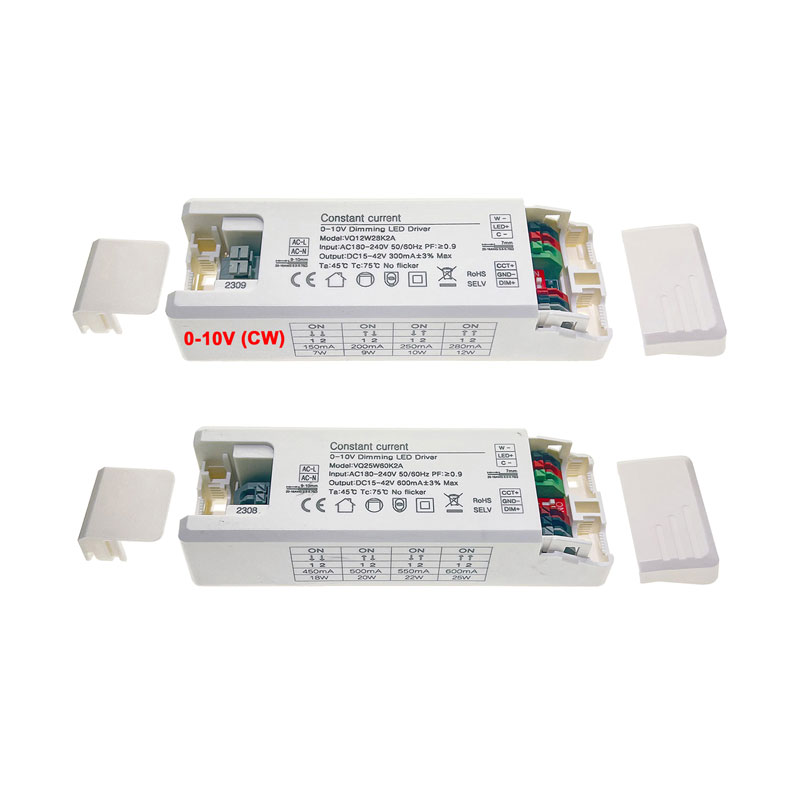

Conventional 100-240VAC 0-10V Dimming & CCT Adjustable LED Driver LEDEAST VQ12W28K2A

Short Description:

Regular 100-240VAC 0-10V Dimming & CCT Adjustable LED Driver is a specialized LED driver that not only enables dimming control but also allows for adjusting the color temperature of the connected LED lights.

In addition to the dimming functionality, this LED driver supports CCT (Correlated Color Temperature) adjustment. CCT refers to the color appearance of light, and adjusting it allows for changing the color temperature emitted by the LED lights. This feature is particularly useful in applications where different lighting atmospheres or moods need to be created. For example, in some spaces, a cooler color temperature (e.g., 5000K) may be desired for a more vibrant and daylight-like environment, while in other areas, a warmer color temperature (e.g., 3000K) may be preferred to create a cozy and relaxed ambiance

Input Voltage: 100-240VAC
Output Voltage: 9-40VDC
Output Current: 150ma~800ma
Dimming Type: 0-10V Dimming
Efficiency: >90%
Power Factor: >0.9 (No Flicker)
Working ENV.: -20 ~ +45°C / 20% ~ 90% RH
Storage ENV.: -20 ~ +70C° / 10% ~ 90% RH
MTBF: 50000 hours
