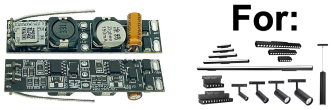

48VDC TUYA Smart Control LED Drivers LEDEAST DTY0120ZA

Short Description:

These LED drivers typically operate on a 48VDC input voltage to provide stable and efficient power output to LED lights. They are integrated with TUYA intelligent control system to realize remote control, scheduling and automation of LED lighting. Through the TUYA Smart Control App, users can easily customize and manage LED lighting, create lighting scenes, set timers, and even control multiple LED drivers simultaneously. This provides a convenient and flexible solution for controlling and managing LED lighting systems in homes, offices and other commercial spaces.

Input Voltage: 48VDC ±3%
Output Voltage: 3-42VDC
Output Current: Customizable (Non-DIP-Switch)150-700mA
Dimming Type: TUYA Control
(Dimming / CCT Adjustable)
Efficiency: >90%, Power Factor: 1
Working ENV.: -20 ~ +45°C / 20% ~ 90% RH
Storage ENV.: -20 ~ +70C° / 10% ~ 90% RH
MTBF: 50000 hours
Control Mode: APP (Group / Single) / Remote / Voice
(Alexa / Google Home) / 86 Panel
APP: Tuya / Smart Life


Product Detail

Product Tags

TUYA-ZIGBEE-S-DTY0120ZA
48V-driver

Specifications

Name DC48V TUYA Zigbee Dimming LED Driver
Supplier LEDEAST

Size: 55*13.5*12mm

Model DTY0120ZB
DC Output Current Customizable (Non-DIP-Switch): 150-700mA  Depends on your requirement
Dimming TUYA Zigbee Dimming
DC Output DC Voltage: 3-42V DC
Line Regulation: ±2%
Load Regulation: ±2%
DC Input DC Input Voltage Range: 48VDC ±3%
DC Rated Voltage: 48VDC
Efficiency: >90%
Protection Short-circuit: Hiccup mode
No-load protection
Negative reverse connect protection
Environment Working Temp.: -20 ~ +45C°
Working Humidity: 20 ~ 90% RH, non-condensing
Storage Temp.: -20 ~ +70C°
Storage Humidity: 10% ~ 90% RH
Others IP Rate: IP22
MTBF: 50000 hours
Warranty 5 Years
