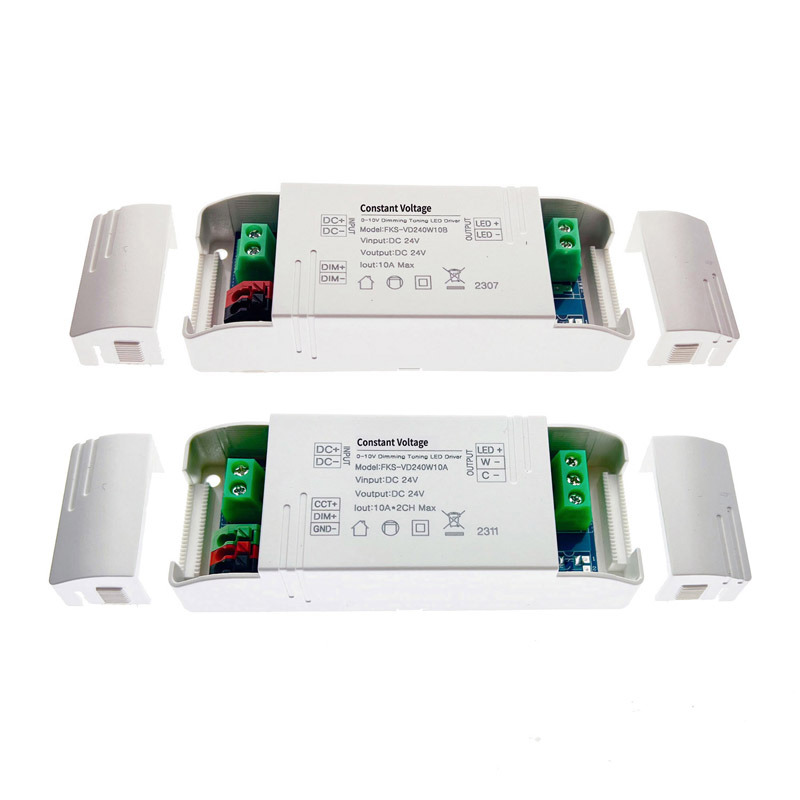

12/24VDC 0/1-10V Dimming LED Driver LEDEAST FKS-VW240W10Y2B

Short Description:

12/24VDC 0/1-10V Dimming LED Driver is a DC driver for dimming LED lights.
The driver accepts 12V or 24V DC power input, and controls the brightness of the LED lamp through a 0/1-10V voltage signal.
When the input voltage is 0V, the LED light will be off and the output brightness will be the lowest. When the input voltage is 10V, the LED light will reach the maximum brightness.
By controlling the difference of the 0/1-10V voltage signal, the dimming effect of the LED lamp can be realized.
This driver is commonly used in lighting applications, especially where dimmable functions are required, such as offices, hotels, shopping malls and residences.
It provides a larger lighting control range, enabling users to adjust the lighting brightness according to their needs, so as to save energy and create different atmosphere effects.

Input Voltage: 12/24VDC
Output Voltage: 12/24VDC
Dimming Type: 0-10V Dimming
Efficiency: >90% Power Factor: >0.9
Working ENV.: -20 ~ +45°C / 20% ~ 90% RH
Storage ENV.: -20 ~ +70C° / 10% ~ 90% RH
MTBF: 50000 hours


Product Detail

Product Tags

FKS-VW240W10Y2B
Driver 0-10V dim

OEM led driverCustom-LED-driver0-10V driver supply (1) 0-10V driver supply (2) 0-10V driver supply (3) LED DRIVER OEM
